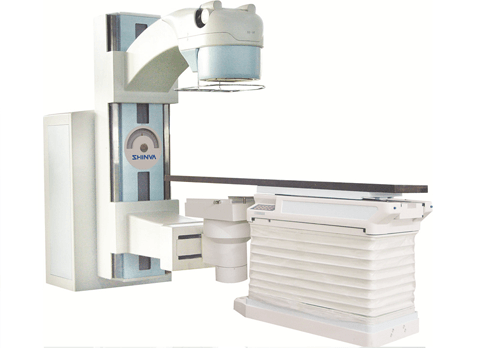

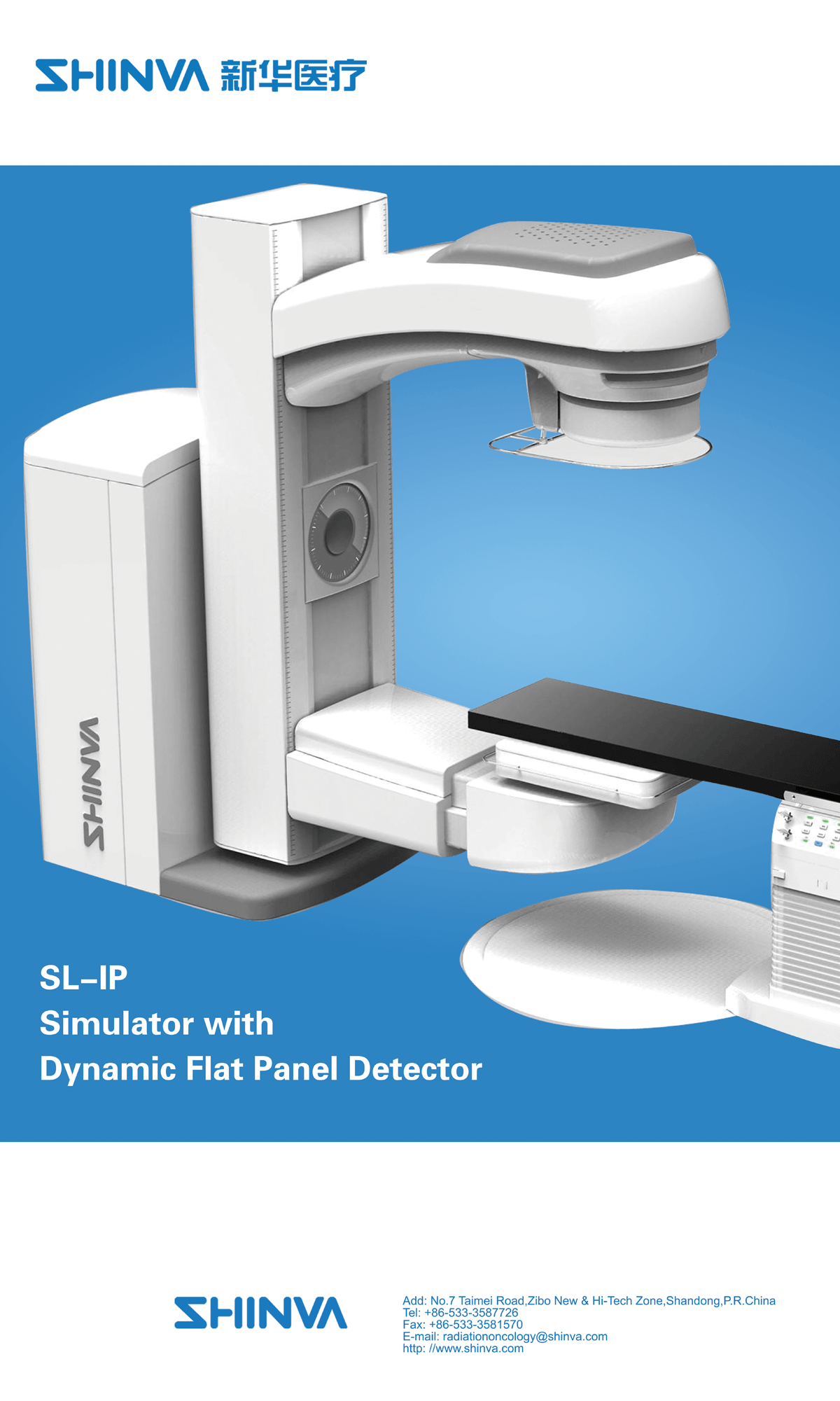

SL-IP Radiotherapy Simulator with Dynamic Panel Detector:
SL-IP raplaces conventional image intensifier system with large-field amorphous silicon flat panel, providing digital and high resolution images as excellent as films, and performing precise simulation and treatment verification. Features: - Integrated control interface is easy to use. - 43cm X 43cm size panel detector provides the largest view among fellow products. - With pulsed fluoroscopy, digital spotting, digital radiography, continuous acquisition & playback and automatic exposure control functions. - SL-IP is able to perform MLC plan design, MU calculation, image registration and plans verification (e.g. MLC position verification). - Automatic image stitching function ensures simulation and verification for large field. - Standard DICOM RT interface can receive RT Plan and automatically set machine parameters based on treatment plan parameters. - SL-IP can receive RT-image (DDR) for positioned image registration. - RT-image, RT-plan and MLC leaf position can be output. - With delineated lines & collimator synchronization tracking technique. - Providing dual anti-collision protection of hardware and software. |
|||
